What I’m offering:

• The possibility to build a high-end simulator at low cost by yourself. Its impressive features include:

  • Actuator stroke: 620mm with a near silent ball screw SFA 1620
  • Pitch and roll angles: greater than 30°
  • Yaw angle: 40°
  • Vertical displacement of 700mm
  • In-plane displacement: 950mm

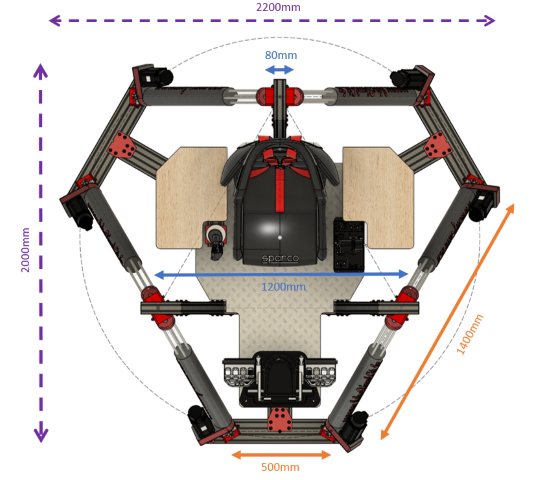

  • Resting footprint: 2200mmx2200mm (can be reduced, at the expense of performance), see blog
  • Ceiling height: 2400mm (can be reduced, at the expense of performance)


These strokes/angles may seem excessive, but are important to allow multiple effects at the same time, without being limited by the rig’s hardware:

• The total cost is around 10,000€

  • The actuators have a stroke of 620mm, and the platform allows very large angles and displacements (see above)
  • 4 axis design, which allows to have a bearing at the end of the screw and thus to limit the vibrations ! see the blog
  • No mechanical parts are 3D printed, everything is machined/laser cut, see the blog
  • No need for special DIY equipment (no welding, cutting of large material etc …)
  • The motors are equipped with brakes for total safety
  • The aluminium profiles allow unprecedented flexibility and modularity
  • Other recommended parts are of high quality (electrical box, emergency stops, power supplies, etc.)
  • Instructions, explanations and after-sales service!

• You can choose only the kit that interests you (pivots, jacks, platform). The rest will be to buy by yourself, there is no added value to go through the site, I give you all the references.

• THE KITS ARE ASSEMBLED BY YOURSELF AND I AM NOT RESPONSIBLE FOR ANY PROBLEMS THAT OCCUR FROM INCORRECT ASSEMBLY.
